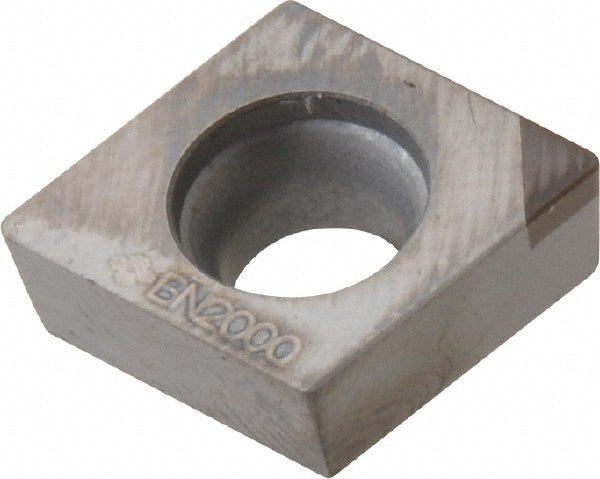

NU-CCGW09T304 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRW6P
MFR# 16JRW6PISO/ANSI# NU-CCGW09T304Series CCG
$48.96List $62.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRW6P is a NU-CCGW09T304 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for cast iron, hardened steel, superalloy.
Specifications
Ansi codeNUCCGA32.51
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.5
Insert styleNU-CCGA
Insert thickness in5/32
Iso codeNU-CCGW09T304
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
