Sumitomo

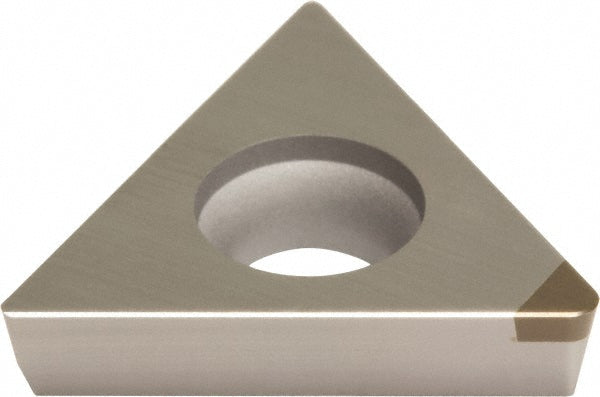

NU-TPGW110202 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN2000 - Sumitomo 16JRW8G
MFR# 16JRW8GISO/ANSI# NU-TPGW110202Series T
$40.41List $51.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Sumitomo 16JRW8G is a NU-TPGW110202 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Chip breakerA
Clearance codeP
Coating processUncoated
Corner radius0.0078
Hole diameter0.1020
Included angle60
Inscribed circle in7/32
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeTriangle
Insert size code21.50.5
Insert styleNU-TPGA
Insert thickness in3/32
Iso codeNU-TPGW110202
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Primary workpiece materialHardened Steel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
