Sumitomo

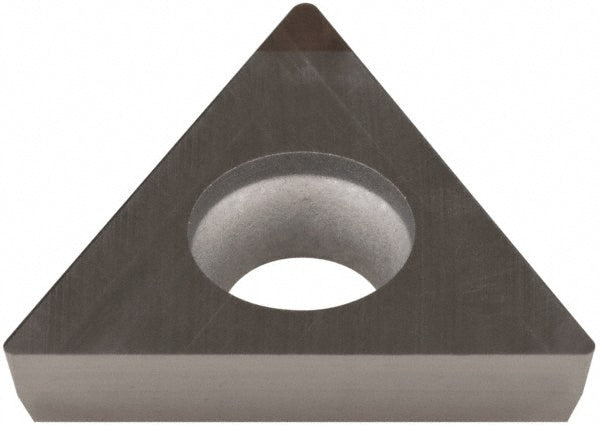

NU-TPGW110302 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRW8M
MFR# 16JRW8MISO/ANSI# NU-TPGW110302Series T
$40.41List $51.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRW8M is a NU-TPGW110302 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeNUTPGA220.5
Chip breakerA
Clearance codeP
Coating processUncoated
Corner radius0.0078
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1024
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code220.5
Insert styleNU-TPGA
Insert thickness in1/8
Iso codeNU-TPGW110302
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialHard Material
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
