Sumitomo

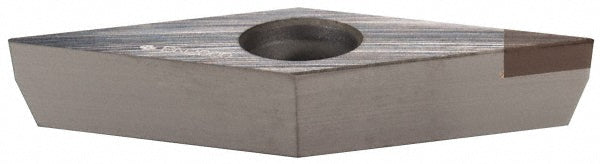

NU-VCGW110302 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN2000 - Sumitomo 16JRW99
MFR# 16JRW99ISO/ANSI# NU-VCGW110302Series V
$47.40List $60.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Sumitomo 16JRW99 is a NU-VCGW110302 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius0.0078
Hole diameter0.1340
Included angle35
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1299
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code220.5
Insert styleNU-VCGA
Insert thickness in1/8
Iso codeNU-VCGW110302
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Number of cutting edges1
Primary workpiece materialHardened Steel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
