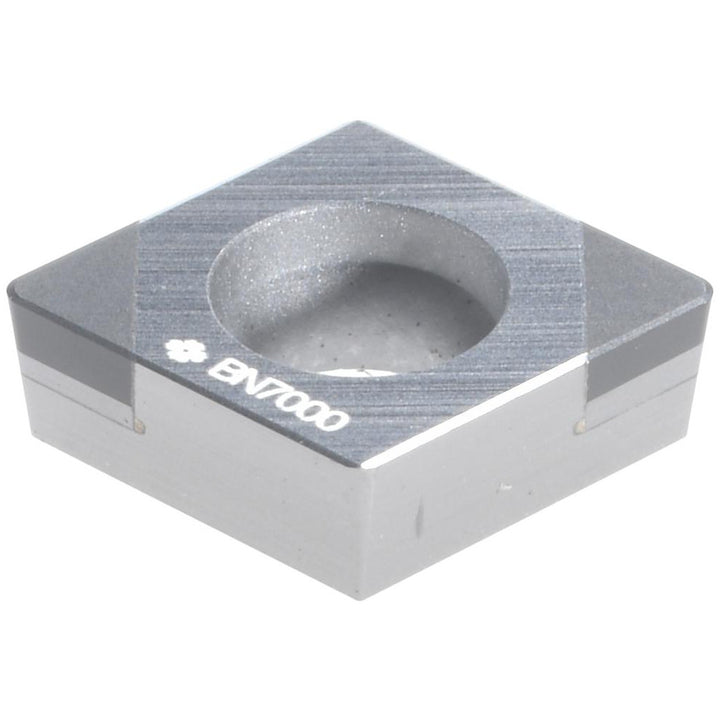

2NU-CCGW060204 PCBN Insert, Grade BN7000, Coated - Sumitomo 16JYDSB
MFR# 16JYDSBISO/ANSI# CCGA060204Series CCG
$71.10List $91.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeBN7000
MaterialPCBN
CoatingCoated
Description
The Sumitomo 16JYDSB is a 2NU-CCGW060204 pcbn indexable insert, grade BN7000, Coated coated. Suited for cast iron, hard material, superalloy.
Specifications
Ansi insert codeCCGA21.51
Ansi size code21.51
Chip breakerA
Clearance codeC
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0906
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.5
Insert styleCCGA
Insert thickness in3/32
Iso code2NU-CCGW060204
Iso insert codeCCGA060204
Iso size code060204
Manufacturer gradeBN7000
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
