Sumitomo

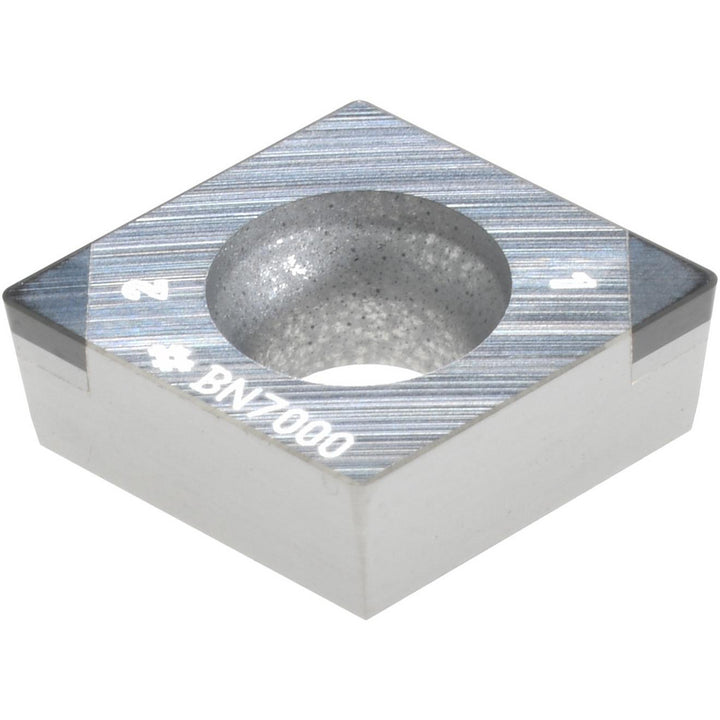

2NU-CCGW09T304 PCBN Insert, Grade BN7000, Coated - Sumitomo 16JYDSC
MFR# 16JYDSCISO/ANSI# CCGA09T304Series CCG
$71.10List $91.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeBN7000
MaterialPCBN
CoatingCoated
Description
The Sumitomo 16JYDSC is a 2NU-CCGW09T304 pcbn indexable insert, grade BN7000, Coated coated. Suited for cast iron, hard material, superalloy.
Specifications
Ansi insert codeCCGA32.51
Ansi size code32.51
Chip breakerA
Clearance codeC
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.5
Insert styleCCGA
Insert thickness in5/32
Iso code2NU-CCGW09T304
Iso insert codeCCGA09T304
Iso size code09T304
Manufacturer gradeBN7000
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
