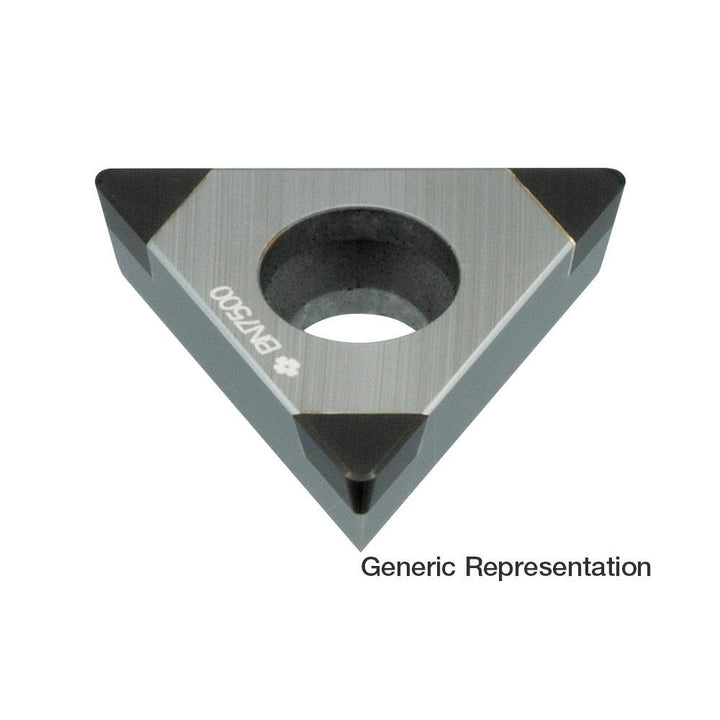

3NU-TPGW110304 Polycrystalline Cubic Boron Nitride Insert, Grade BN7000, Coated - Sumitomo 16JYDSY

Sumitomo

3NU-TPGW110304 Polycrystalline Cubic Boron Nitride Insert, Grade BN7000, Coated - Sumitomo 16JYDSY

MFR# 16JYDSYISO/ANSI# 3NU-TPGW110304Series TPG

$89.35List $114.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeBN7000
MaterialPolycrystalline Cubic Boron Nitride
CoatingCoated

Description

The Sumitomo 16JYDSY is a 3NU-TPGW110304 polycrystalline cubic boron nitride indexable insert, grade BN7000, Coated coated. Suited for cast iron, hard material, superalloy.

Specifications

Ansi code3NUTPGA221
Chip breakerA
Clearance codeP
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code221
Insert style3NU-TPGA
Insert thickness in1/8
Iso code3NU-TPGW110304
Manufacturer gradeBN7000
Number of cutting edges3
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
