Sumitomo

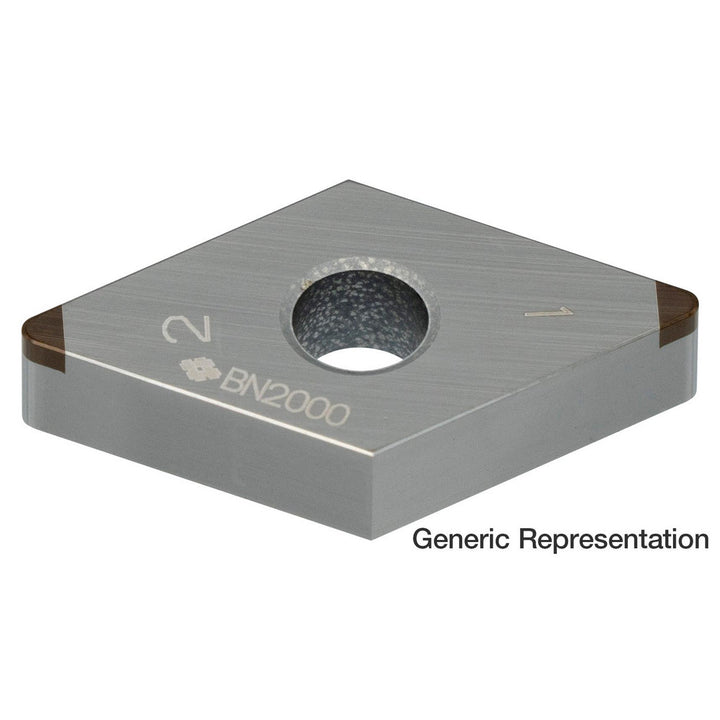

2NU-DNGA150408HS Polycrystalline Cubic Boron Nitride Insert, Grade BN7000 - Sumitomo 16JYDVE
MFR# 16JYDVEISO/ANSI# 2NU-DNGA150408HSSeries D
$63.21List $81.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN7000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JYDVE is a 2NU-DNGA150408HS polycrystalline cubic boron nitride indexable insert, grade BN7000. Suited for superalloy, titanium.
Specifications
Ansi code2NUDNGA432HS
Chip breakerHS
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0827
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert style2NU-DNGA
Insert thickness in3/16
Iso code2NU-DNGA150408HS
Manufacturer gradeBN7000
Number of cutting edges2
Primary workpiece materialSuperalloy; Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
