Sumitomo

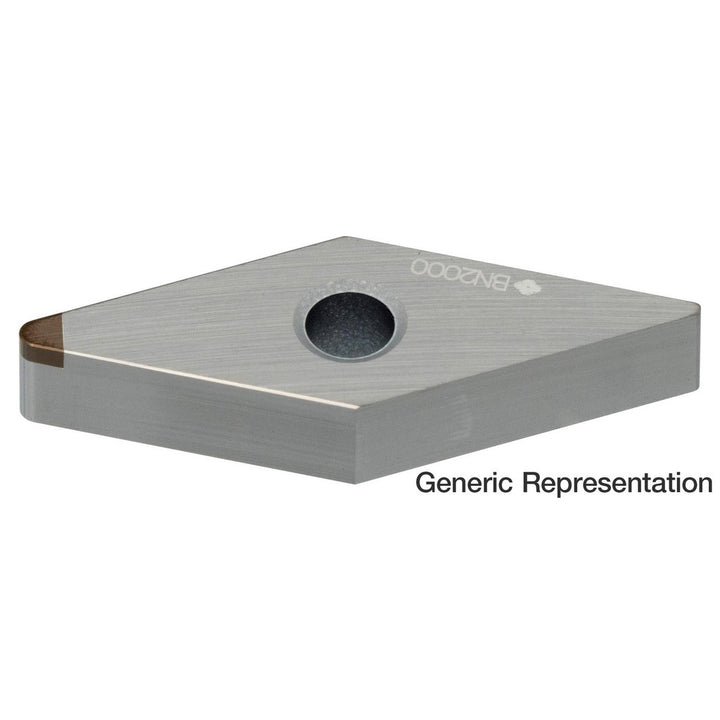

VNMA160404 Polycrystalline Cubic Boron Nitride Insert, Grade BN7000, Coated - Sumitomo 16JYWH2
MFR# 16JYWH2ISO/ANSI# VNMA160404Series VN
$62.90List $80.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN7000
MaterialPolycrystalline Cubic Boron Nitride
CoatingCoated
Description
The Sumitomo 16JYWH2 is a VNMA160404 polycrystalline cubic boron nitride indexable insert, grade BN7000, Coated coated. Suited for universal.
Specifications
Ansi codeVNMA331
Chip breakerA
Clearance codeN
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code331
Insert styleVNMA
Insert thickness in3/16
Iso codeVNMA160404
Manufacturer gradeBN7000
Primary workpiece materialUniversal
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
