Sumitomo

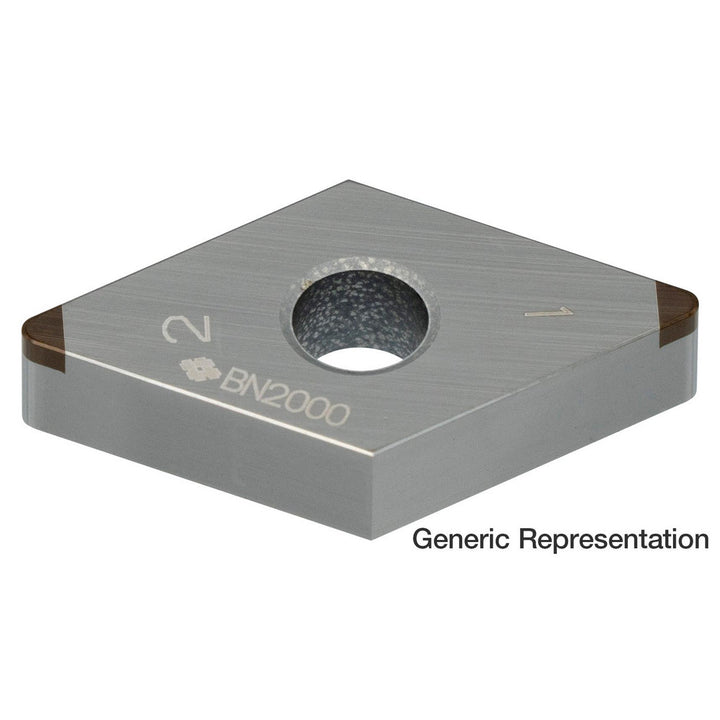

2NU-DNGA150404 Polycrystalline Cubic Boron Nitride Insert, Grade BN7500 - Sumitomo 16RK125
MFR# 16RK125ISO/ANSI# 2NU-DNGA150404Series D
$61.37List $78.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN7500
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16RK125 is a 2NU-DNGA150404 polycrystalline cubic boron nitride indexable insert, grade BN7500. Suited for powdered metal.
Specifications
Ansi code2NUDNGA431
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert style2NU-DNGA
Insert thickness in3/16
Iso code2NU-DNGA150404
Manufacturer gradeBN7500
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialPowdered Metal
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
