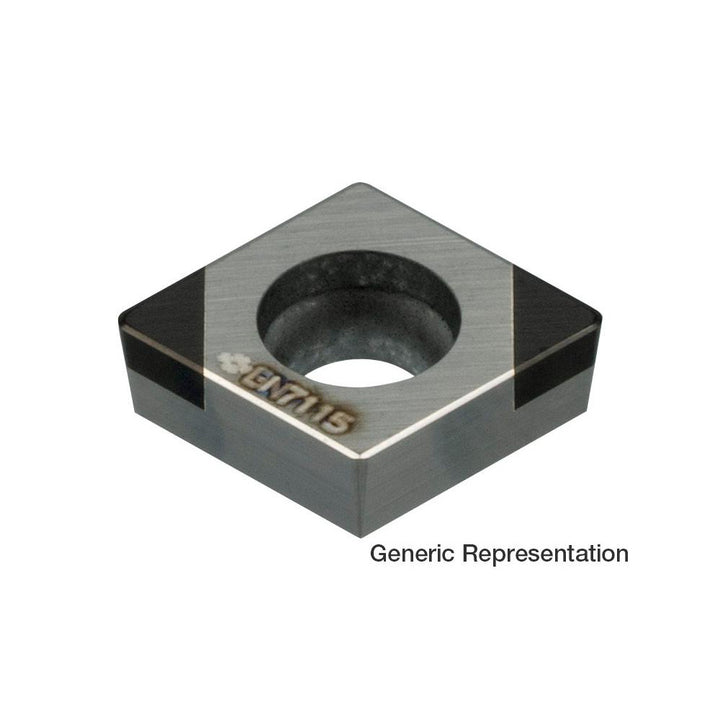

2NU-CCGW09T304 Polycrystalline Cubic Boron Nitride Insert, Grade BN7500 - Sumitomo 16RK144

Sumitomo

2NU-CCGW09T304 Polycrystalline Cubic Boron Nitride Insert, Grade BN7500 - Sumitomo 16RK144

MFR# 16RK144ISO/ANSI# 2NU-CCGW09T304Series CCG

$71.10List $91.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN7500
MaterialPolycrystalline Cubic Boron Nitride

Description

The Sumitomo 16RK144 is a 2NU-CCGW09T304 polycrystalline cubic boron nitride indexable insert, grade BN7500. Suited for cast iron, hardened steel, superalloy.

Specifications

Ansi code2NUCCGA32.51
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.5
Insert style2NU-CCGA
Insert thickness in5/32
Iso code2NU-CCGW09T304
Manufacturer gradeBN7500
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
