Sumitomo

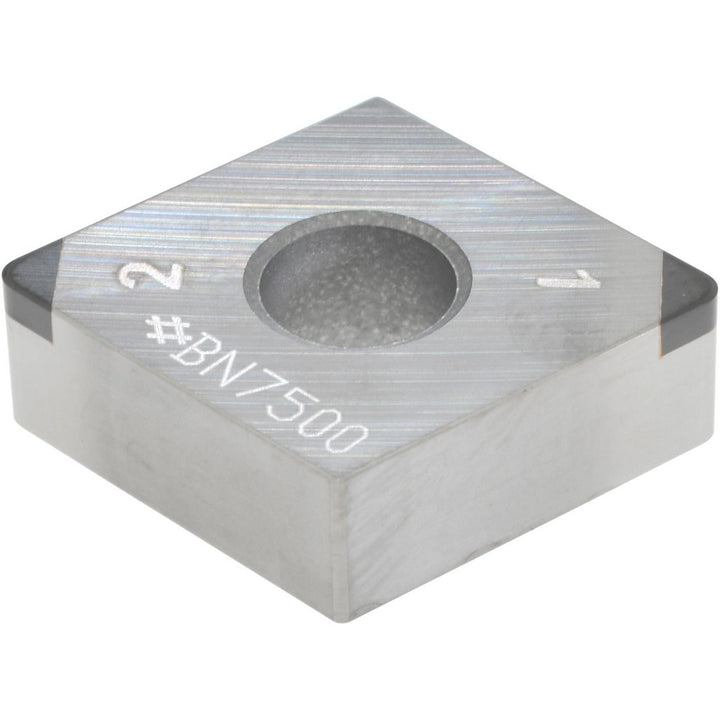

2NU-CNGA120408WG PCBN Insert, Grade BN7500 - Sumitomo 16RKWEG
MFR# 16RKWEGISO/ANSI# CNGA120408Series C
$61.99List $79.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeBN7500
MaterialPCBN
Description
The Sumitomo 16RKWEG is a 2NU-CNGA120408WG pcbn indexable insert, grade BN7500. Suited for powdered metal.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerWG
Clearance codeN
Coating processUncoated
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso code2NU-CNGA120408WG
Iso insert codeCNGA120408
Iso size code120408
Manufacturer gradeBN7500
Number of cutting edges2
Primary workpiece materialPowdered Metal
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
