Sumitomo

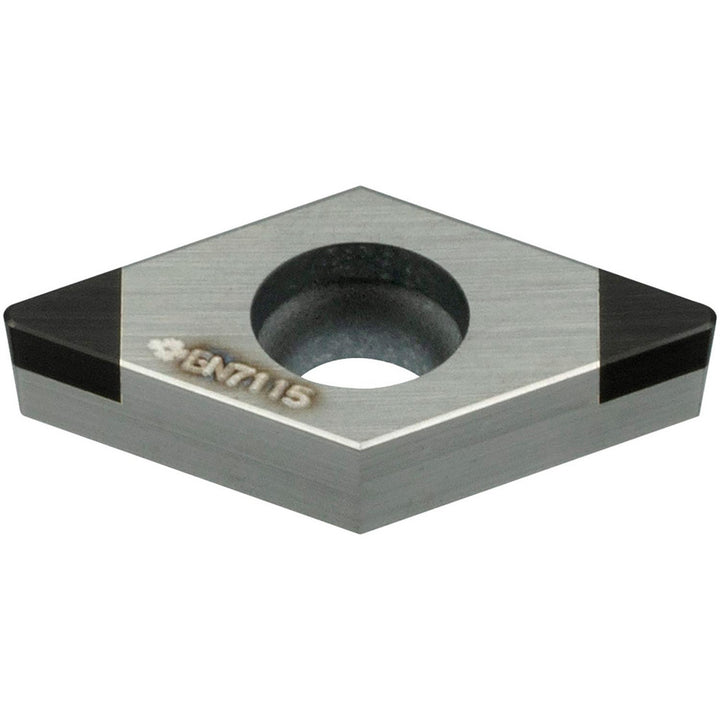

Diamond Cubic Boron Nitride (CBN) Insert, Grade BN7115 - Sumitomo 16V9FKC
MFR# 16V9FKCCat# 2NUDCGA32.51-BN7115Series BN7115
$75.21List $96.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeBN7115
MaterialCubic Boron Nitride (CBN)
Description
The Sumitomo 16V9FKC is a cubic boron nitride (cbn) indexable insert, grade BN7115.
Specifications
Chip breakerNone
Clearance codeC
Corner radius (mm)0.40
Inscribed circle (mm)9.53
Insert handNeutral
Insert holding methodScrew
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code32.51
Insert styleDCGA
Insert thickness3.97
Manufacturers catalog number2NUDCGA32.51-BN7115
Manufacturer gradeBN7115
Maximum depth of cut (mm)0.50
Relief angle7
Tolerance codeG
