Sumitomo

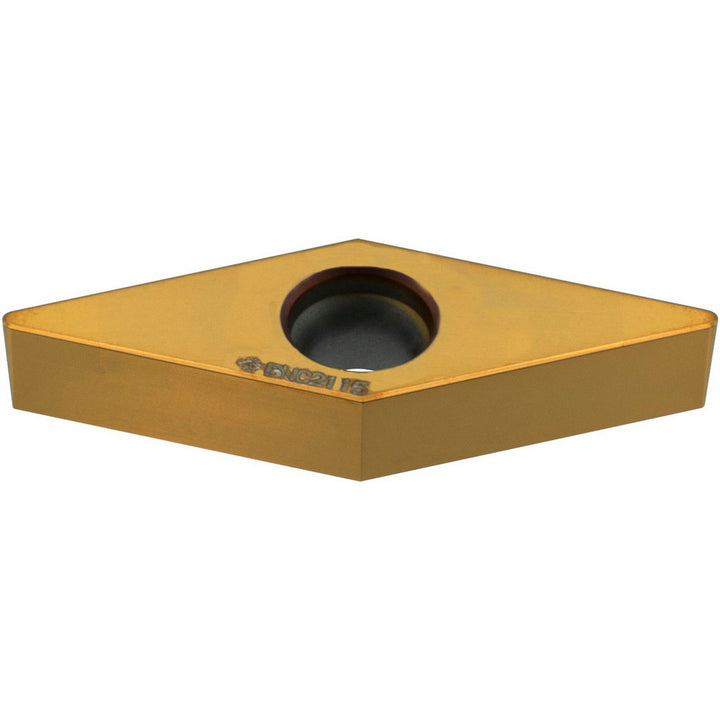

V - Diamond (Rhombic) 35-Deg 0.2500" IC CBN Insert, Grade BNC2115, TiAlSiN - Sumitomo 16W3FQS
MFR# 16W3FQSISO/ANSI# VBGA110304Cat# 2NCVBGA221-BNC2115Series BNC2115
$79.77List $102.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeBNC2115
MaterialCBN
CoatingTiAlSiN
Description
The Sumitomo 16W3FQS is a cbn indexable insert, grade BNC2115, TiAlSiN coated.
Specifications
Ansi insert codeVBGA221
Ansi size code221
Chip breakerNo Chip Breaker
Chip breaker operationNo Chip Breaker
Clearance codeB
Coating finishTiAlSiN
Corner radius (mm)0.40
Grade characteristicsHardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBGA
Insert thickness3.18
Iso insert codeVBGA110304
Iso size code110304
Manufacturers catalog number2NCVBGA221-BNC2115
Manufacturer gradeBNC2115
Maximum depth of cut (mm)0.50
Relief angle5
Side clearancePositive
Tolerance codeG
