Sumitomo

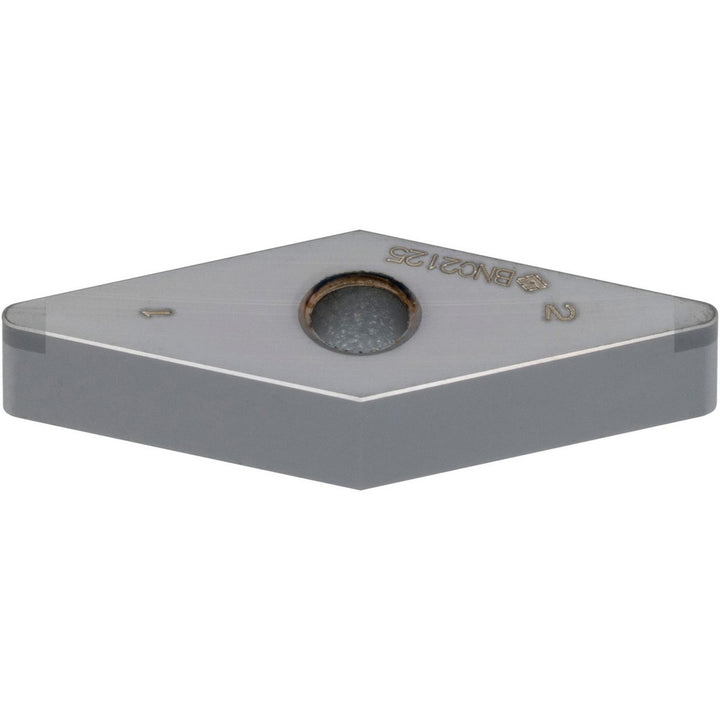

Diamond Cubic Boron Nitride (CBN) Insert, Grade BNC2125, TiAlBN - Sumitomo 16W4FXC
MFR# 16W4FXCCat# 2NCVNGA332-BNC2125Series BNC2125
$69.27List $88.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeBNC2125
MaterialCubic Boron Nitride (CBN)
CoatingTiAlBN
Description
The Sumitomo 16W4FXC is a cubic boron nitride (cbn) indexable insert, grade BNC2125, TiAlBN coated.
Specifications
Chip breakerNone
Clearance codeN
Coating finishTiAlBN
Corner radius (mm)0.80
Cutting directionNeutral
Inscribed circle (mm)9.53
Insert handNeutral
Insert holding methodPin; Clamp
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code332
Insert styleVNGA
Insert thickness4.76
Manufacturers catalog number2NCVNGA332-BNC2125
Manufacturer gradeBNC2125
Maximum depth of cut (mm)0.50
Relief angle0.000
Tolerance codeG
