Sumitomo

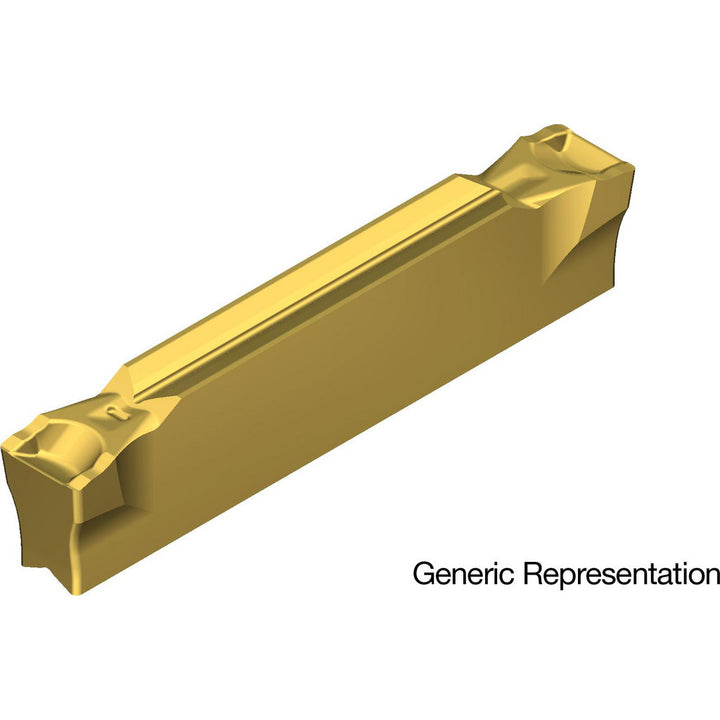

ISO 13399 Solid Carbide Insert, Grade AC425K, Coated - Sumitomo 186PALQ
MFR# 186PALQISO/ANSI# ISO 13399Series GND
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC425K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 186PALQ is a ISO 13399 solid carbide indexable insert, grade AC425K, Coated coated. Suited for cast iron.
Specifications
Ansi codeGCMN2002-GL
Chip breakerGL
Coating finishCoated
Coating processCVD
Corner radius0.0079
Cutting height0.1420
Cutting width0.0787
Full radiusNo
Inscribed circle0.8310
Insert handNeutral
Insert materialSolid Carbide
Insert seat size2
Insert size2002
Insert size code2002
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC425K
Maximum corner radius0.0079
Maximum depth of cut in3/4
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolNo
Overall length0.8310
Overall width0.0787
Primary workpiece materialCast Iron
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
