Sumitomo

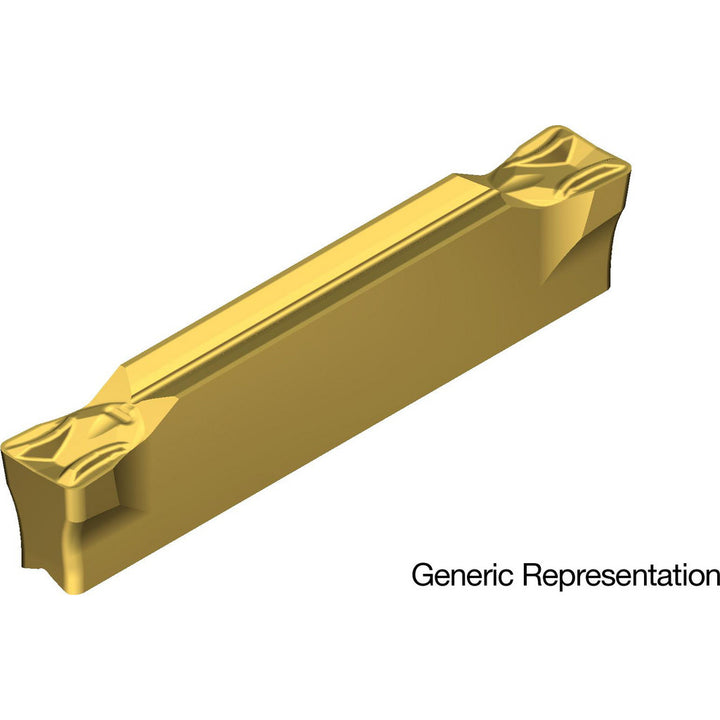

ISO 13399 Solid Carbide Insert, Grade AC425K, Coated - Sumitomo 186PALW
MFR# 186PALWISO/ANSI# ISO 13399Series GND
$24.67List $31.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC425K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 186PALW is a ISO 13399 solid carbide indexable insert, grade AC425K, Coated coated. Suited for cast iron.
Specifications
Ansi codeGCMN4008-MG
Chip breakerMG
Coating finishCoated
Coating processCVD
Corner radius0.0315
Cutting height0.1570
Cutting width0.1575
Full radiusNo
Inscribed circle1.0390
Insert handNeutral
Insert materialSolid Carbide
Insert seat size4
Insert size4008
Insert size code4008
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC425K
Maximum corner radius0.0315
Maximum depth of cut in1
Maximum depth of cut range1.0000+
Minimum corner radius0.0315
Multi use toolYes
Overall length1.0390
Overall width0.1575
Primary workpiece materialCast Iron
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
