Sumitomo

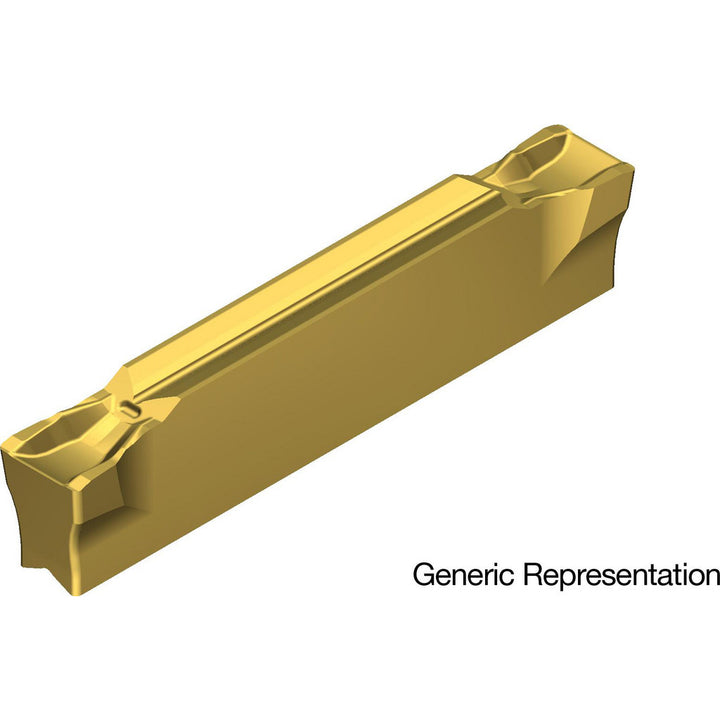

ISO 13399 Solid Carbide Insert, Grade AC425K, Coated - Sumitomo 186PAMJ
MFR# 186PAMJISO/ANSI# ISO 13399Series GND
$23.63List $30.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC425K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 186PAMJ is a ISO 13399 solid carbide indexable insert, grade AC425K, Coated coated. Suited for cast iron.
Specifications
Ansi codeGCMN3004-GG
Chip breakerGG
Coating finishCoated
Coating processCVD
Corner radius0.0157
Cutting height0.1500
Cutting width0.1181
Full radiusNo
Inscribed circle0.8310
Insert handNeutral
Insert materialSolid Carbide
Insert seat size3
Insert size3004
Insert size code3004
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC425K
Maximum corner radius0.0157
Maximum depth of cut in3/4
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0157
Multi use toolNo
Overall length0.8310
Overall width0.1181
Primary workpiece materialCast Iron
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
