Sumitomo

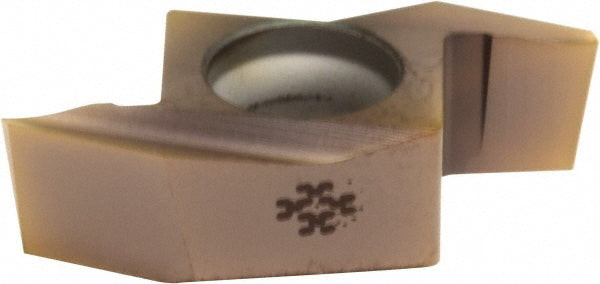

0.2677" IC Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 18HM611
MFR# 18HM611
$28.56List $36.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 18HM611 is a solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeBTR3505
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Included angle60.0
Inscribed circle0.2677
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert size code505
Insert styleBTR
Insert thickness0.1496
Length range0.5000 - 0.6000
Manufacturer gradeAC530U
Maximum depth of cut0.1378
Relief angle3
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
