Sumitomo

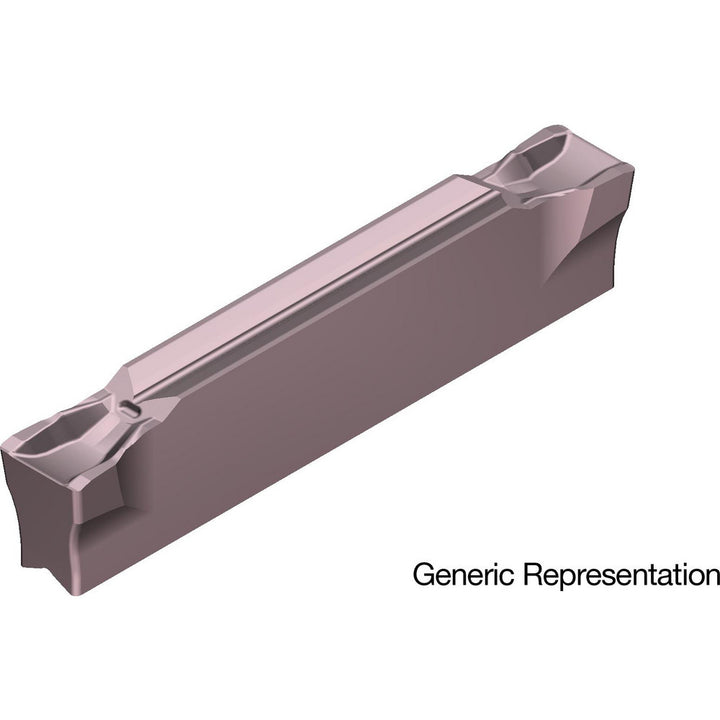

ISO 13399 Carbide Insert, Grade AC530U, AlCrN - Sumitomo 18HMALM
MFR# 18HMALMISO/ANSI# ISO 13399Series GND
$23.05List $29.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialCarbide
CoatingAlCrN
Description
The Sumitomo 18HMALM is a ISO 13399 carbide indexable insert, grade AC530U, AlCrN coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN4002-GG
Chip breakerGG
Coating finishAlCrN
Coating processPVD
Corner radius0.0079
Cutting height0.1575
Cutting width0.1575in
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert seat size4
Insert size4002
Insert size code4002
Insert styleGCM
Iso codeISO 13399
Manufacturer gradeAC530U
Multi use toolNo
Overall length1.0394in
Overall width0.1575in
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloys; Titanium
StandardsANSI; ISO 13399
