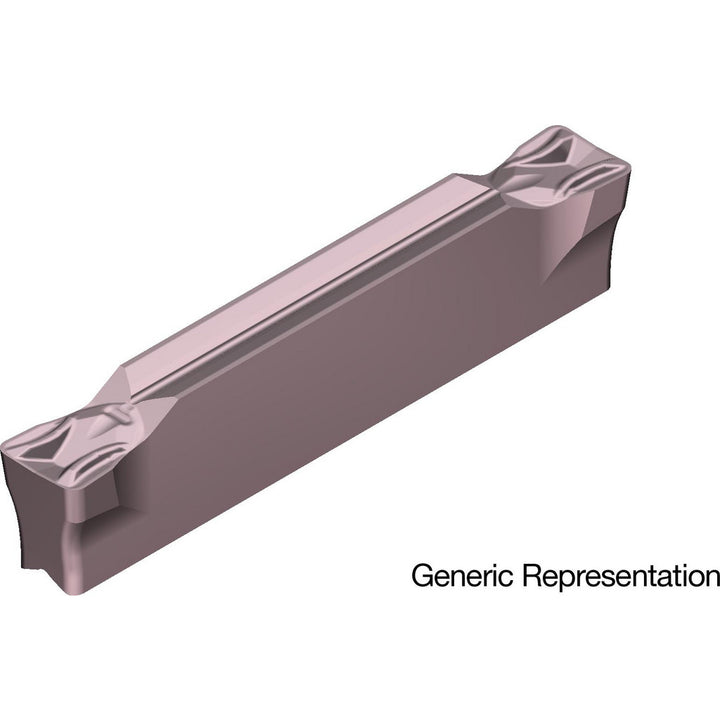

ISO 13399 Solid Carbide Insert, Grade AC530U, AlCrN - Sumitomo 18HMALW
MFR# 18HMALWISO/ANSI# ISO 13399Series GND
$24.67List $31.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialSolid Carbide
CoatingAlCrN
Description
The Sumitomo 18HMALW is a ISO 13399 solid carbide indexable insert, grade AC530U, AlCrN coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN4008-MG
Chip breakerMG
Coating finishAlCrN
Coating processPVD
Corner radius0.0315
Cutting height0.1575
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size4
Insert size4008
Insert size code4008
Insert styleGCM
Iso codeISO 13399
Manufacturer gradeAC530U
Multi use toolNo
Overall length1.0394
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloy; Titanium
Single or double endDouble
StandardsANSI; ISO 13399
