Sumitomo

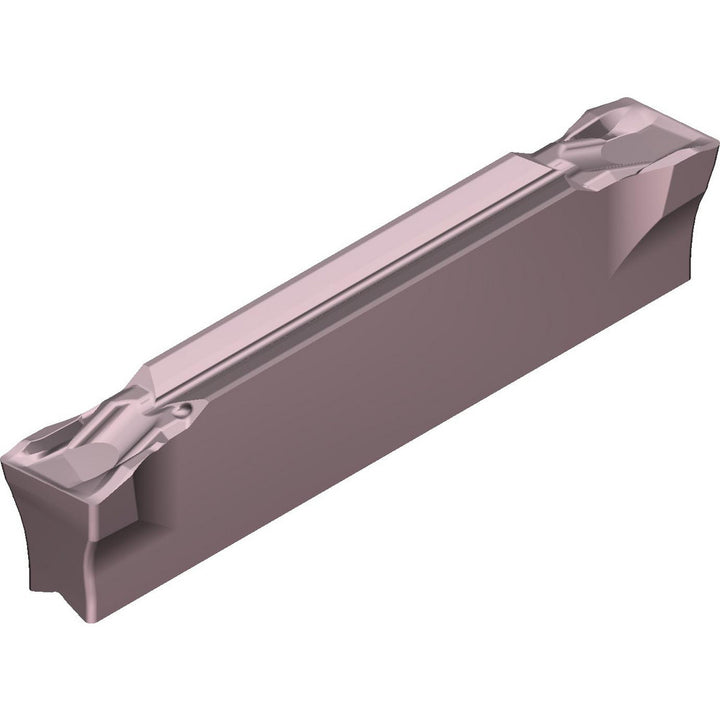

ISO 13399 Solid Carbide Insert, Grade AC530U, Coated - Sumitomo 18HMAMN
MFR# 18HMAMNISO/ANSI# ISO 13399Series GND
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18HMAMN is a ISO 13399 solid carbide indexable insert, grade AC530U, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMR2002-CG-05
Chip breakerCG
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting height0.1420
Cutting width0.0787
Full radiusNo
Inscribed circle0.8310
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size2002
Insert size code2002
Insert styleGCMR
Iso codeISO 13399
Lead angle5
Manufacturer gradeAC530U
Maximum corner radius0.0079
Maximum depth of cut in3/4
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolNo
Overall length0.8310
Overall width0.0787
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle5.00
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloy; Titanium
Single or double endDouble
StandardsANSI; ISO 13399
