Sumitomo

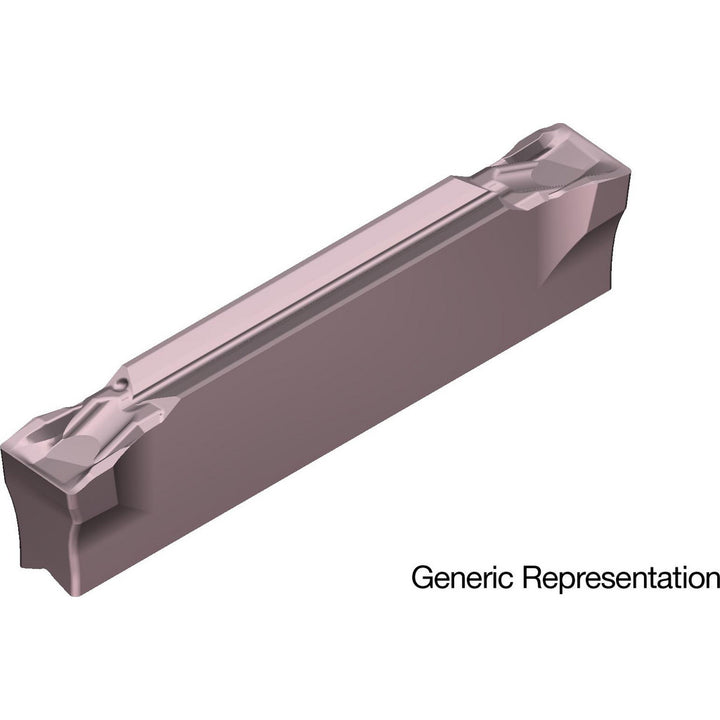

ISO 13399 Solid Carbide Insert, Grade AC530U, Coated - Sumitomo 18HMAMT
MFR# 18HMAMTISO/ANSI# ISO 13399Series GND
$24.67List $31.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18HMAMT is a ISO 13399 solid carbide indexable insert, grade AC530U, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCML4002-CG-05
Chip breakerCG
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting height0.1570
Cutting width0.1575
Full radiusNo
Inscribed circle1.0390
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size4
Insert size4002
Insert size code4002
Insert styleGCML
Iso codeISO 13399
Lead angle5
Manufacturer gradeAC530U
Maximum corner radius0.0079
Maximum depth of cut in1
Maximum depth of cut range1.0000+
Minimum corner radius0.0079
Multi use toolNo
Overall length1.0390
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle5.00
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloy; Titanium
Single or double endDouble
StandardsANSI; ISO 13399
