Sumitomo

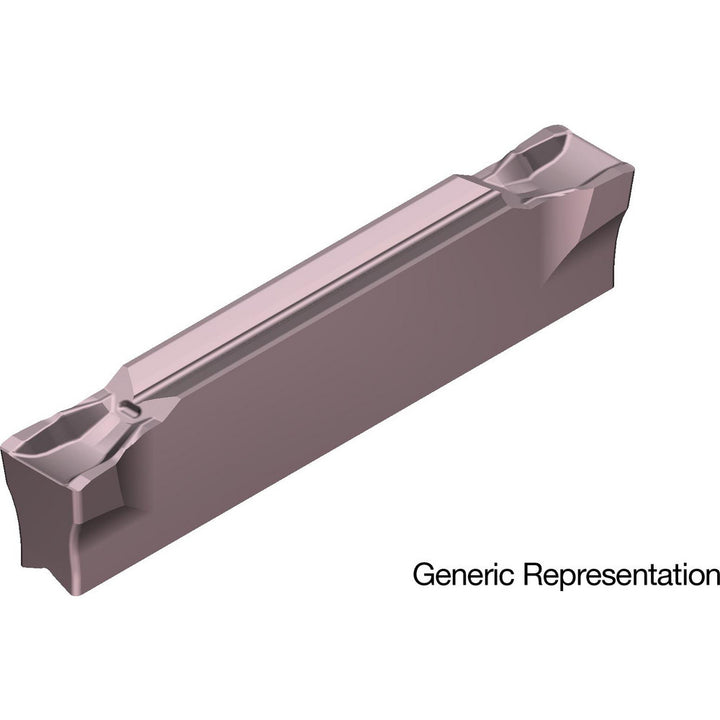

ISO 13399 Carbide Insert, Grade AC530U - Sumitomo 18HMW14
MFR# 18HMW14ISO/ANSI# ISO 13399Series GND
$26.78List $34.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialCarbide
Description
The Sumitomo 18HMW14 is a ISO 13399 carbide indexable insert, grade AC530U. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN6250R1.0-GG
Chip breakerGG
Coating processPVD
Corner radius in1/128
Cutting height0.1770
Cutting width in3/16
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size5
Insert size code6250
Insert styleGCMN
Iso codeISO 13399
Lead angle7
Manufacturer gradeAC530U
Maximum depth of cut0.8310
Maximum depth of cut range0.3000 to 1.0000
Measurement typeDecimal Inch
Multi use toolNo
Overall length1.039
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloys; Titanium
StandardsANSI; ISO 13399
