Sumitomo

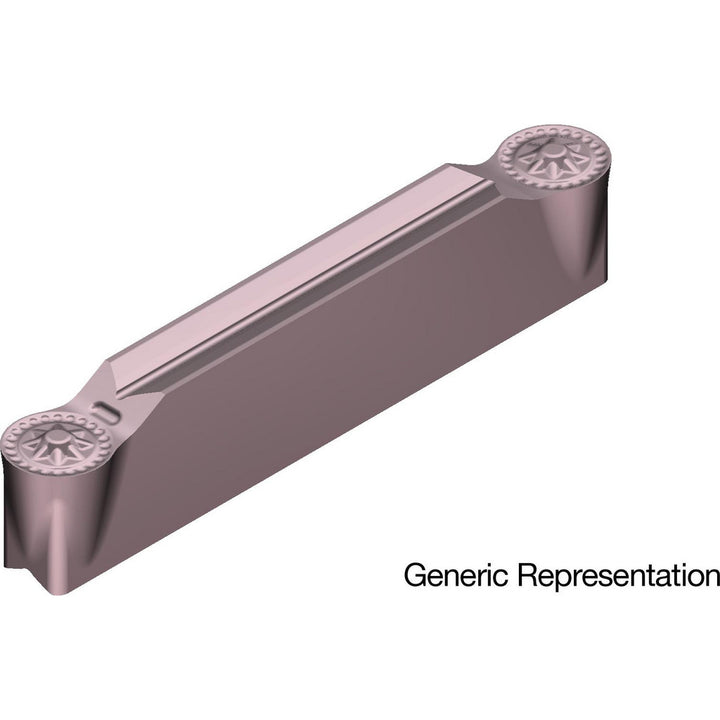

ISO 13399 Solid Carbide Insert, Grade AC530U, Coated - Sumitomo 18HMW17
MFR# 18HMW17ISO/ANSI# ISO 13399Series GND
$32.96List $41.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC530U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18HMW17 is a ISO 13399 solid carbide indexable insert, grade AC530U, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN6250-RG
Chip breakerRG
Coating finishCoated
Coating processPVD
Corner radius in1/4
Cutting height0.1770
Cutting width in1/4
Full radiusYes
Inscribed circle1.0390
Insert handNeutral
Insert materialSolid Carbide
Insert seat size6
Insert size6
Insert size code6250
Insert styleGCMN
Iso codeISO 13399
Lead angle7
Manufacturer gradeAC530U
Maximum depth of cut in1
Multi use toolYes
Overall length1.0390
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Superalloy; Titanium
Single or double endDouble
StandardsANSI; ISO 13399
