Sumitomo

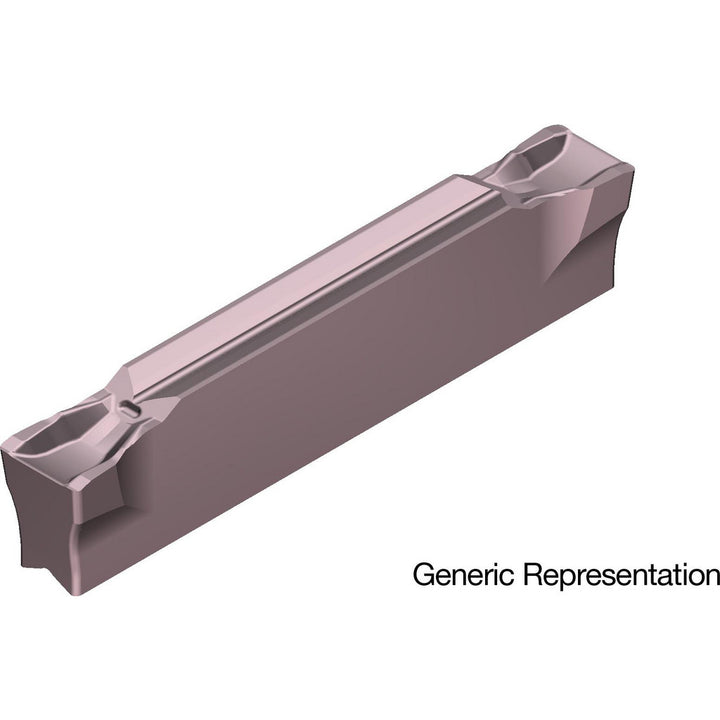

Carbide Insert, Grade AC520U, Super ZX - Sumitomo 18HWALK
MFR# 18HWALKCat# GCMN2002-GG-AC520USeries GND
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC520U
MaterialCarbide
CoatingSuper ZX
Description
The Sumitomo 18HWALK is a carbide indexable insert, grade AC520U, Super ZX coated.
Specifications
Chip breakerGG
Coating finishSuper ZX
Coating processPVD
Corner radius0.0079
Cutting height (mm)3.60
Cutting width (mm)2.00
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2002
Insert styleGCM
Insert thickness3.60
Manufacturers catalog numberGCMN2002-GG-AC520U
Manufacturer gradeAC520U
Maximum depth of cut (mm)20.00
Maximum depth of cut range (mm)20.00+
Number of cutting edges2
Relief angle7
