Sumitomo

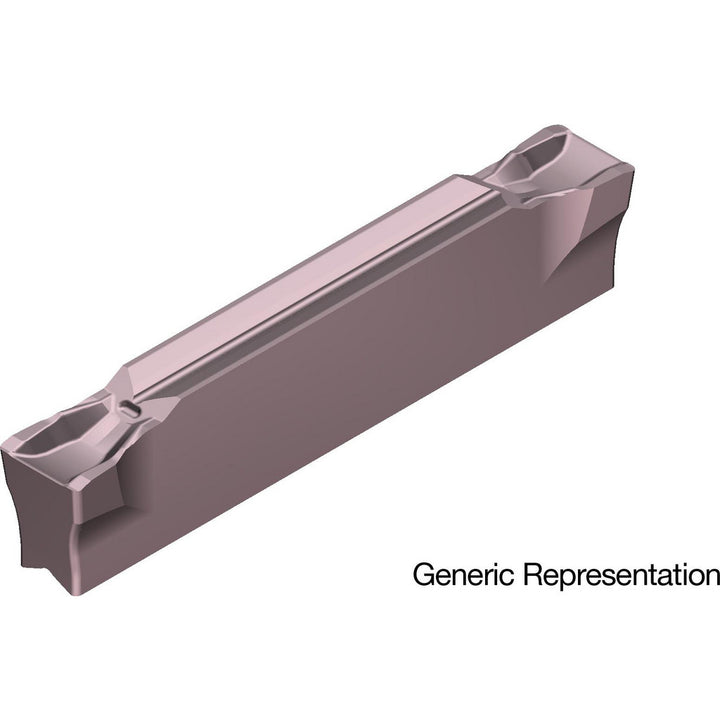

ISO 13399 Solid Carbide Insert, Grade AC520U, Coated - Sumitomo 18HWALL
MFR# 18HWALLISO/ANSI# ISO 13399Series GND
$23.63List $30.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC520U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18HWALL is a ISO 13399 solid carbide indexable insert, grade AC520U, Coated coated. Suited for universal.
Specifications
Ansi codeGCMN3002-GG
Chip breakerGG
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting height0.1500
Cutting width0.1181
Full radiusNo
Inscribed circle0.8310
Insert handNeutral
Insert materialSolid Carbide
Insert seat size3
Insert size3002
Insert size code3002
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC520U
Maximum corner radius0.0079
Maximum depth of cut in3/4
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolNo
Overall length0.8310
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
