Sumitomo

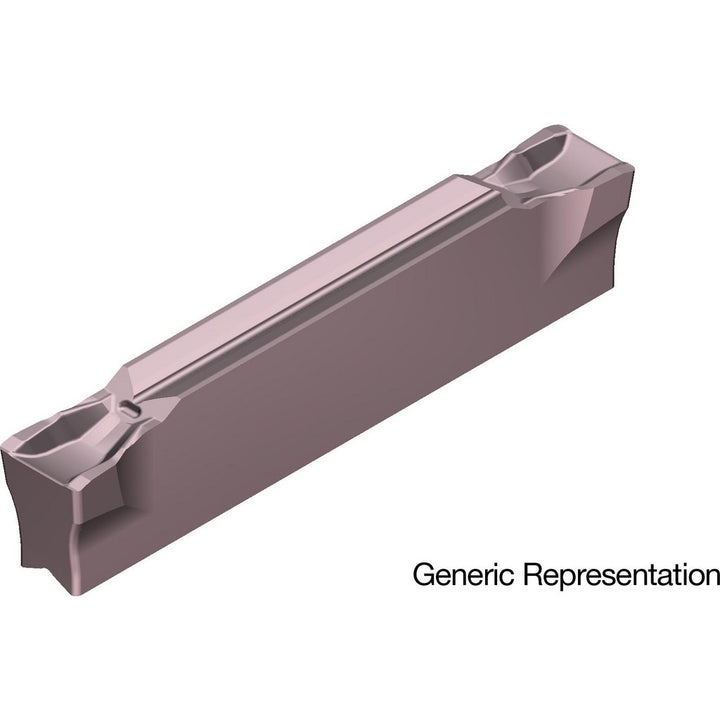

ISO 13399 Solid Carbide Insert, Grade AC520U, Coated - Sumitomo 18HWW12
MFR# 18HWW12ISO/ANSI# ISO 13399Series GND
$28.66List $36.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC520U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18HWW12 is a ISO 13399 solid carbide indexable insert, grade AC520U, Coated coated. Suited for universal.
Specifications
Ansi codeGCMN6250R0.5-GG
Chip breakerGG
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting height0.1770
Cutting width in1/4
Full radiusNo
Inscribed circle1.0390
Insert handNeutral
Insert materialSolid Carbide
Insert seat size6
Insert size6250
Insert size code6250
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC520U
Maximum corner radius0.0079
Maximum depth of cut in1
Maximum depth of cut range1.0000+
Minimum corner radius0.0079
Multi use toolNo
Overall length1.0390
Overall width in1/4
Primary workpiece materialUniversal
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
