Sumitomo

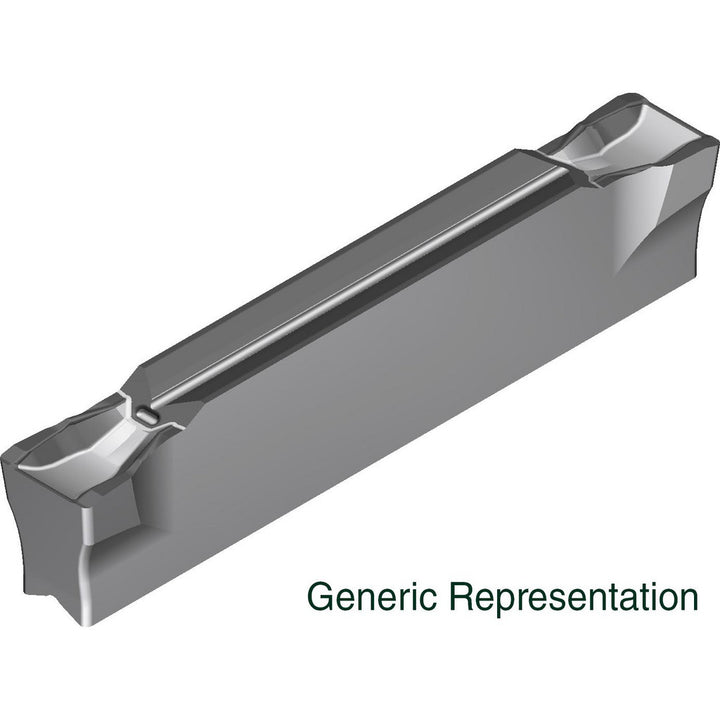

Carbide Insert, Grade AC8025P, Absotech - Sumitomo 18P7AMM
MFR# 18P7AMMCat# GCMN6004-GG-AC8025PSeries GND
$30.68List $39.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 18P7AMM is a carbide indexable insert, grade AC8025P, Absotech coated.
Specifications
Chip breakerGG
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Cutting height (mm)4.50
Cutting width (mm)6.00
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size6004
Insert styleGCM
Insert thickness4.50
Manufacturers catalog numberGCMN6004-GG-AC8025P
Manufacturer gradeAC8025P
Maximum depth of cut (mm)25.00
Maximum depth of cut range (mm)20.00+
Measurement typeMetric
Number of cutting edges2
Relief angle7
