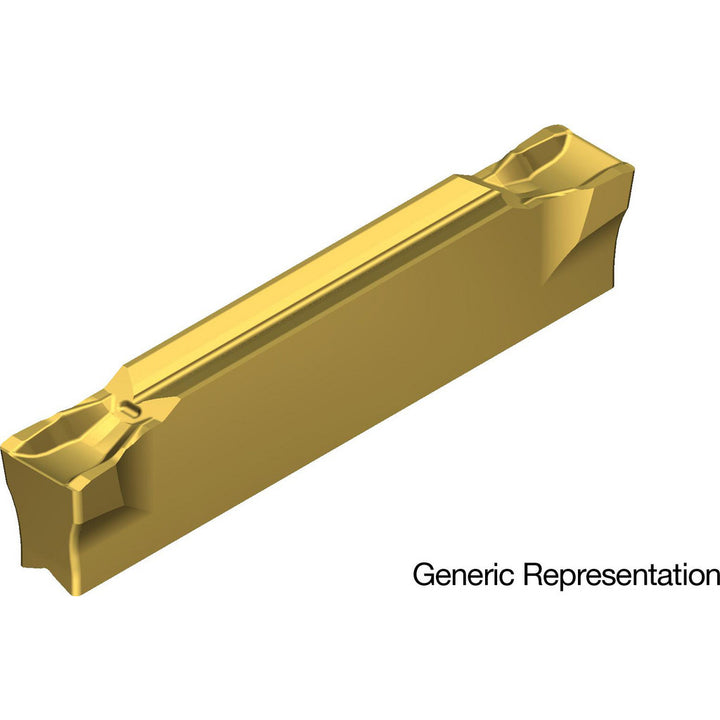

ISO 13399 Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 18RBALM
MFR# 18RBALMISO/ANSI# ISO 13399Series GND
$24.67List $31.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18RBALM is a ISO 13399 solid carbide indexable insert, grade AC830P, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN4002-GG
Chip breakerGG
Coating finishCoated
Coating processCVD
Corner radius0.0079
Cutting height0.1570
Cutting width0.1575
Full radiusNo
Inscribed circle1.0390
Insert handNeutral
Insert materialSolid Carbide
Insert seat size4
Insert size4002
Insert size code4002
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC830P
Maximum corner radius0.0079
Maximum depth of cut in1
Maximum depth of cut range1.0000+
Minimum corner radius0.0079
Multi use toolNo
Overall length1.0390
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
