Sumitomo

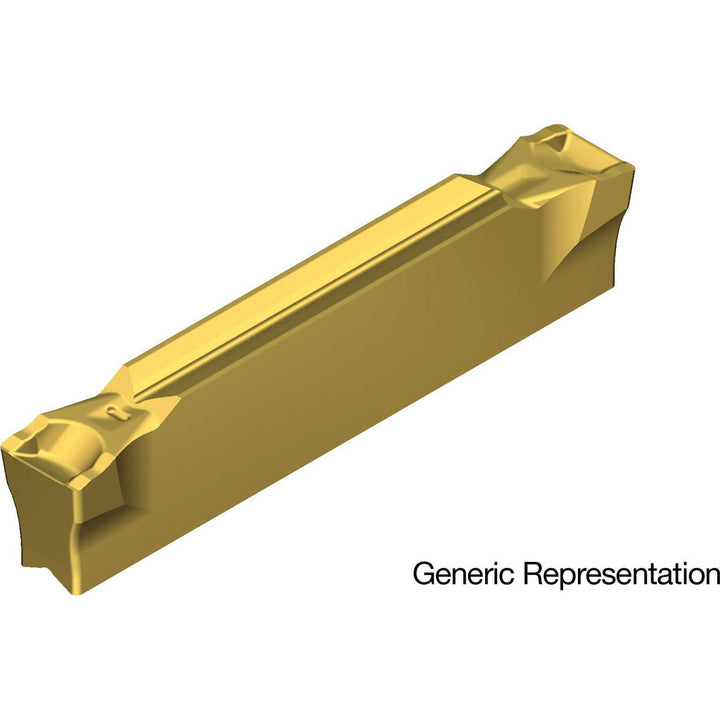

ISO 13399 Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 18RBW0S
MFR# 18RBW0SISO/ANSI# ISO 13399Series GND
$21.44List $27.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 18RBW0S is a ISO 13399 solid carbide indexable insert, grade AC830P, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeGCMN3125R0.5-GL
Chip breakerGL
Coating finishCoated
Coating processCVD
Corner radius0.0079
Cutting height0.1500
Cutting width in1/8
Full radiusNo
Inscribed circle0.8310
Insert handNeutral
Insert materialSolid Carbide
Insert seat size3
Insert size3125
Insert size code3125
Insert styleGCMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeAC830P
Maximum corner radius0.0079
Maximum depth of cut in3/4
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolNo
Overall length0.8310
Overall width in1/8
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle5.00
Single or double endDouble
StandardsANSI; ISO 13399
