Sumitomo
Carbide Insert, Grade AC5015S, Absotech - Sumitomo 18T5AME
MFR# 18T5AMECat# GCMN3015-RG-AC5015SSeries GND
$25.28List $32.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC5015S
MaterialCarbide
CoatingAbsotech
Description

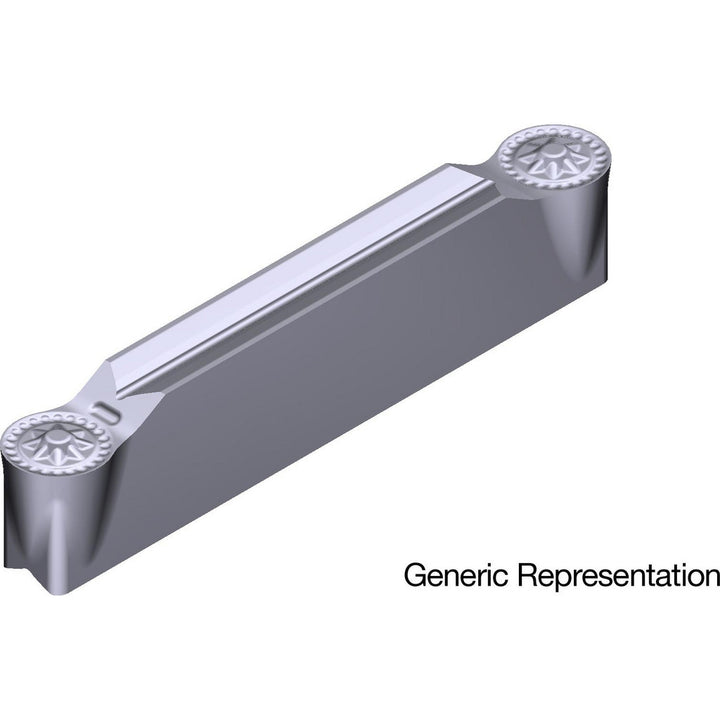

The Sumitomo 18T5AME is a carbide indexable insert, grade AC5015S, Absotech coated.
Specifications
Chip breakerRG
Coating finishAbsotech
Coating processPVD
Corner radius0.0591
Cutting height (mm)3.80
Cutting width (mm)3.00
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3015
Insert styleGCM
Insert thickness3.80
Manufacturers catalog numberGCMN3015-RG-AC5015S
Manufacturer gradeAC5015S
Maximum depth of cut (mm)20.00
Maximum depth of cut range (mm)20.00+
Number of cutting edges2
Relief angle7
