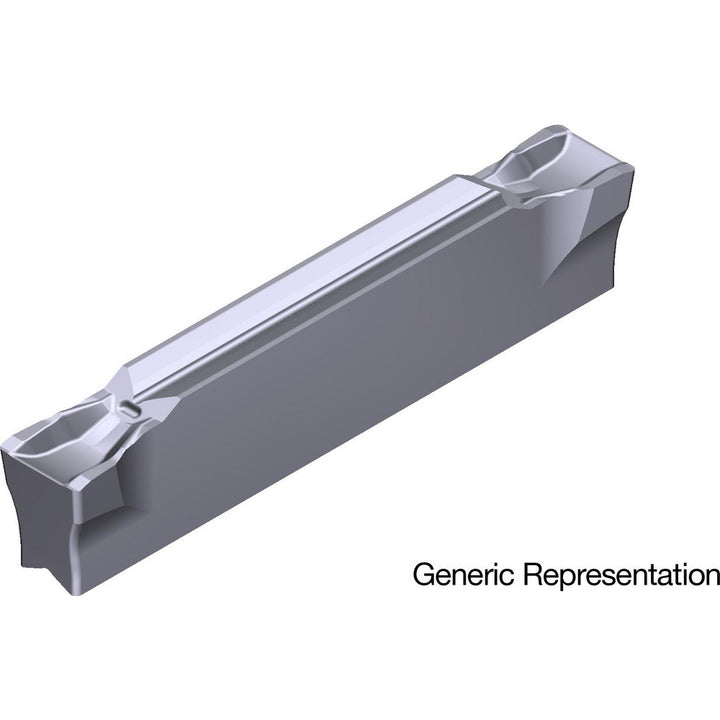

Carbide Insert, Grade AC5015S, Absotech - Sumitomo 18T5W0P
MFR# 18T5W0PCat# GCMN2094R0.5-GG-AC5015SSeries GND
$23.90List $30.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC5015S
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 18T5W0P is a carbide indexable insert, grade AC5015S, Absotech coated.
Specifications
Chip breakerGG
Coating finishAbsotech
Coating processPVD
Corner radius0.0078
Cutting height0.1420
Cutting width0.094
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2094
Insert styleGCM
Insert thickness0.1420
Manufacturers catalog numberGCMN2094R0.5-GG-AC5015S
Manufacturer gradeAC5015S
Maximum depth of cut0.7090
Maximum depth of cut range0.3000 to 1.0000
Number of cutting edges2
Relief angle7
