Sumitomo

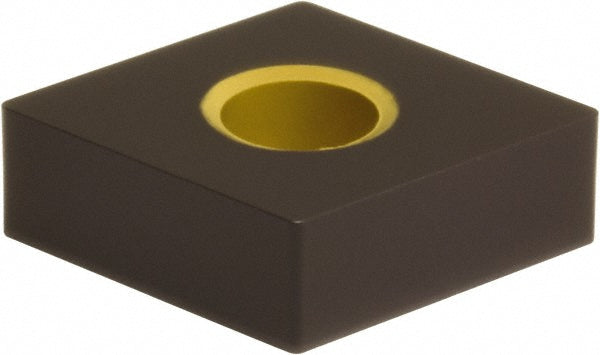

CNMA120404 Solid Carbide Insert, Grade AC405K, Coated - Sumitomo 192Q269
MFR# 192Q269ISO/ANSI# CNMA120404Series CN
$10.45List $13.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC405K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192Q269 is a CNMA120404 solid carbide indexable insert, grade AC405K, Coated coated.
Specifications
Ansi codeCNMA431
Chip breakerA
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120404
Manufacturer gradeAC405K
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
