Sumitomo

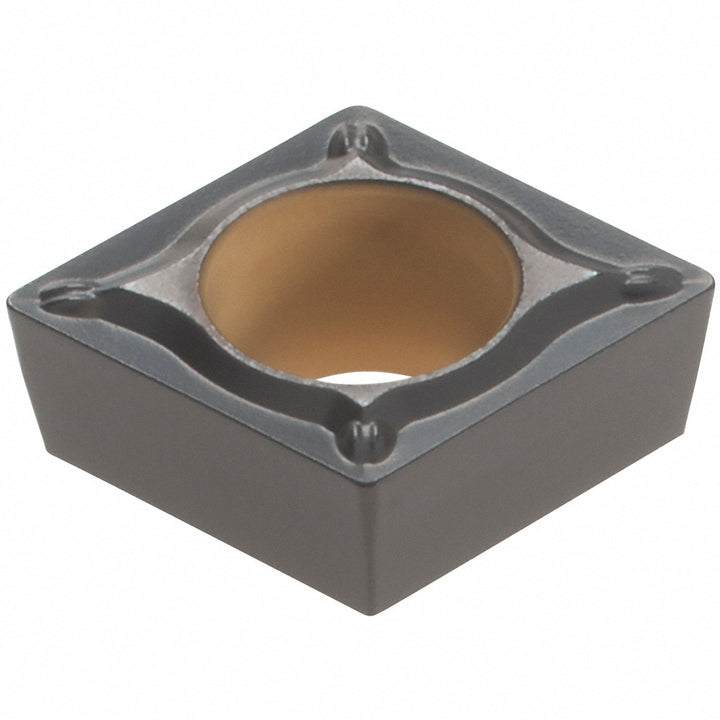

CCMT09T304N-SU Solid Carbide Insert, Grade AC405K, Coated - Sumitomo 192QBPE
MFR# 192QBPEISO/ANSI# CCMT09T304N-SUSeries CC
$10.15List $13.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC405K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192QBPE is a CCMT09T304N-SU solid carbide indexable insert, grade AC405K, Coated coated.
Specifications
Ansi codeCCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Manufacturer gradeAC405K
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
