Sumitomo

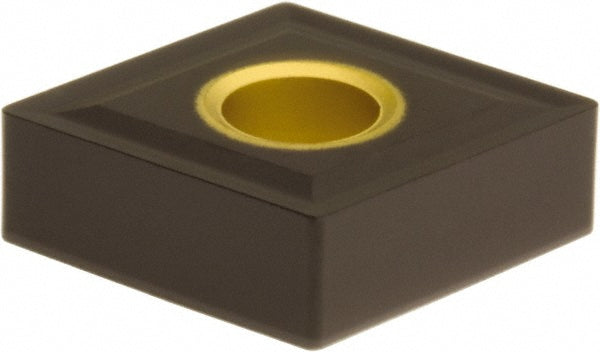

CNMG120412N-UZ Carbide Insert, Grade AC415K, Coated - Sumitomo 192R779
MFR# 192R779ISO/ANSI# CNMG120412N-UZSeries CN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC415K
MaterialCarbide
CoatingCoated
Description
The Sumitomo 192R779 is a CNMG120412N-UZ carbide indexable insert, grade AC415K, Coated coated.
Specifications
Chip breakerENZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-UZ
Manufacturer gradeAC415K
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
