Sumitomo

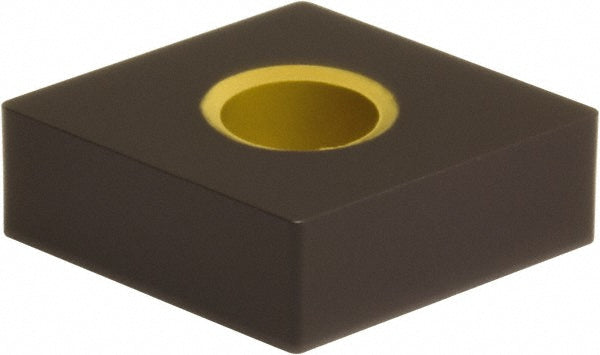

CNMA120416 Solid Carbide Insert, Grade AC415K, Coated - Sumitomo 192RAJX
MFR# 192RAJXISO/ANSI# CNMA120416Series CN
$11.18List $14.33
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC415K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192RAJX is a CNMA120416 solid carbide indexable insert, grade AC415K, Coated coated.
Specifications
Ansi codeCNMA434
Chip breakerA
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/16
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code434
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120416
Manufacturer gradeAC415K
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
