Sumitomo

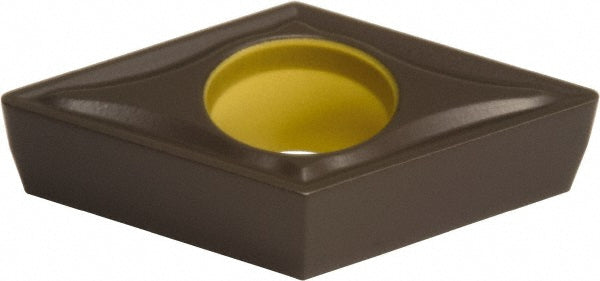

DCMT11T308N-MU Solid Carbide Insert, Grade AC415K, Coated - Sumitomo 192RBPY
MFR# 192RBPYISO/ANSI# DCMT11T308N-MUSeries DC
$18.87List $23.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC415K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192RBPY is a DCMT11T308N-MU solid carbide indexable insert, grade AC415K, Coated coated.
Specifications
Ansi codeDCMT32.52EMU
Chip breakerEMU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308N-MU
Manufacturer gradeAC415K
RakeNeutral
Rake angle0
Relief angle7
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
