Sumitomo

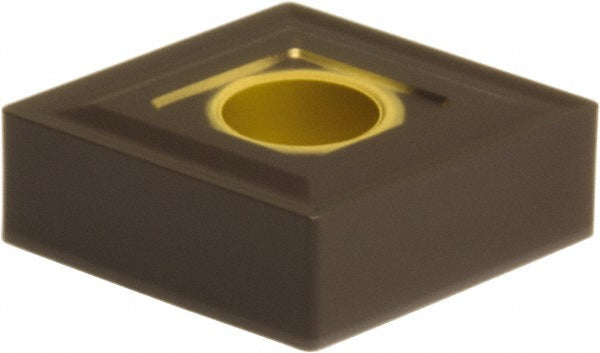

CNMG120408N-GZ Solid Carbide Insert, Grade AC415K, Coated - Sumitomo 192RCAB
MFR# 192RCABISO/ANSI# CNMG120408N-GZSeries CN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC415K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192RCAB is a CNMG120408N-GZ solid carbide indexable insert, grade AC415K, Coated coated.
Specifications
Ansi codeCNMG432EGZ
Chip breakerEGZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GZ
Manufacturer gradeAC415K
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
