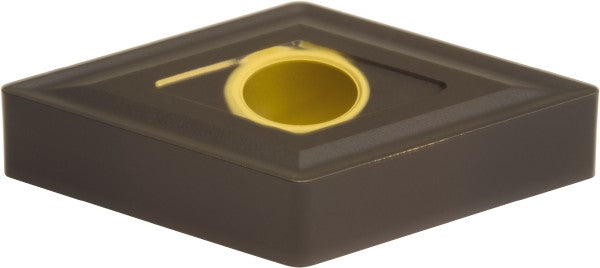

DNMG150404N-GZ Carbide Insert, Grade AC415K, Coated - Sumitomo 192RCAE

Sumitomo

DNMG150404N-GZ Carbide Insert, Grade AC415K, Coated - Sumitomo 192RCAE

MFR# 192RCAEISO/ANSI# DNMG150404N-GZSeries DN

$16.99List $21.40 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC415K
MaterialCarbide
CoatingCoated

Description

The Sumitomo 192RCAE is a DNMG150404N-GZ carbide indexable insert, grade AC415K, Coated coated.

Specifications

Chip breakerEGZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-GZ
Manufacturer gradeAC415K
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
