Sumitomo

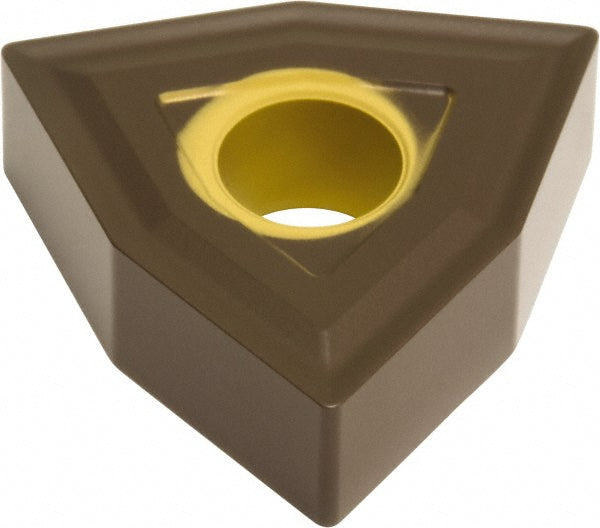

WNMG080408N-GZ Solid Carbide Insert, Grade AC415K, Coated - Sumitomo 192RCAW
MFR# 192RCAWISO/ANSI# WNMG080408N-GZSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC415K
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 192RCAW is a WNMG080408N-GZ solid carbide indexable insert, grade AC415K, Coated coated.
Specifications
Ansi codeWNMG432EGZ
Chip breakerEGZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GZ
Manufacturer gradeAC415K
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO 13399
Tolerance codeM
