Sumitomo

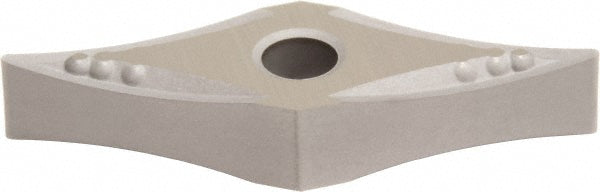

VNMG160404N-UP Solid Carbide Insert, Grade G10E - Sumitomo 1934374
MFR# 1934374ISO/ANSI# VNMG160404N-UPSeries VN
$14.20List $18.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeG10E
MaterialSolid Carbide
Description
The Sumitomo 1934374 is a VNMG160404N-UP solid carbide indexable insert, grade G10E. Suited for cast iron.
Specifications
Ansi codeVNMG331EUP
Chip breakerEUP
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-UP
Manufacturer gradeG10E
Material gradeC2
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
