Sumitomo

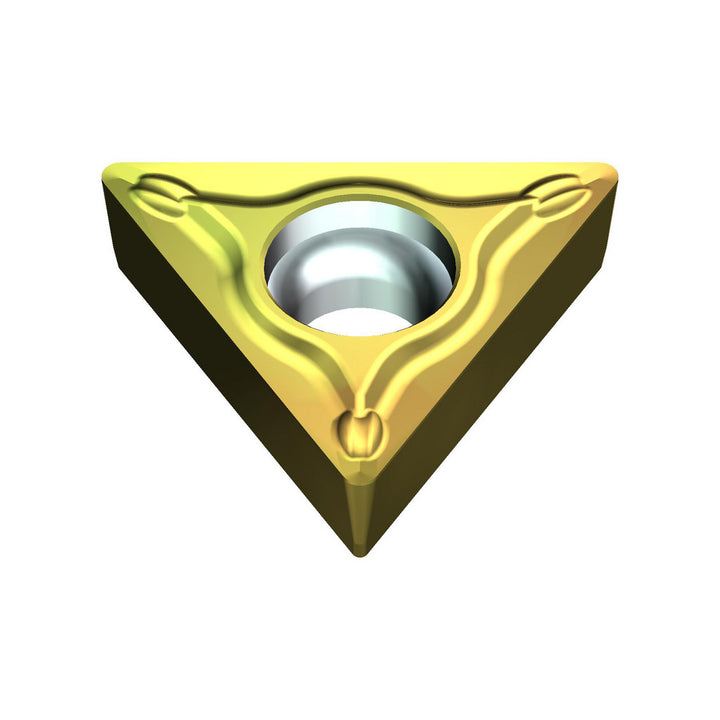

TPMT110308N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194A109
MFR# 194A109ISO/ANSI# TPMT110308N-SUSeries TP
$8.66List $11.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194A109 is a TPMT110308N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeP
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.1339
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCermet
Insert shapeTriangle
Insert size code222
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110308N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
