Sumitomo

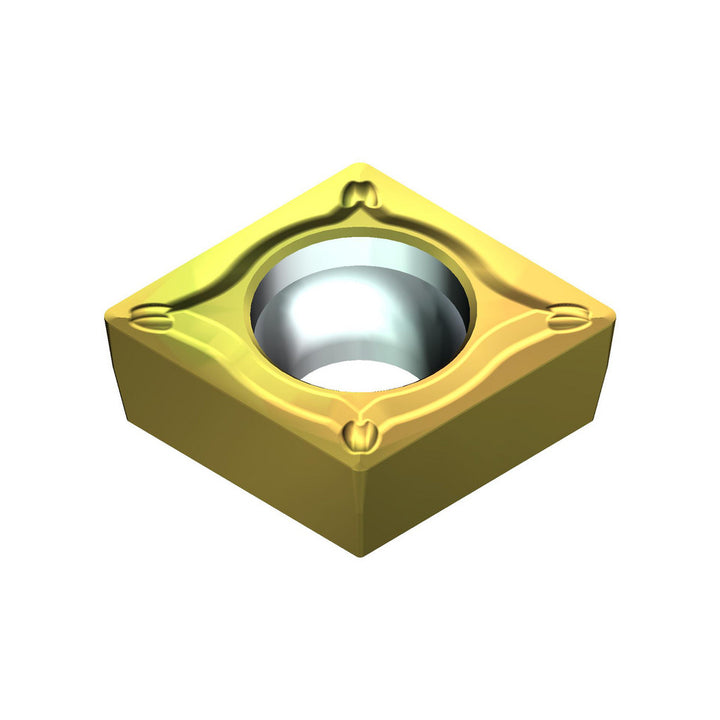

CCMT09T302N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194A122
MFR# 194A122ISO/ANSI# CCMT09T302N-SUSeries CC
$9.16List $11.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194A122 is a CCMT09T302N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialCermet
Insert shapeDiamond
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
