Sumitomo

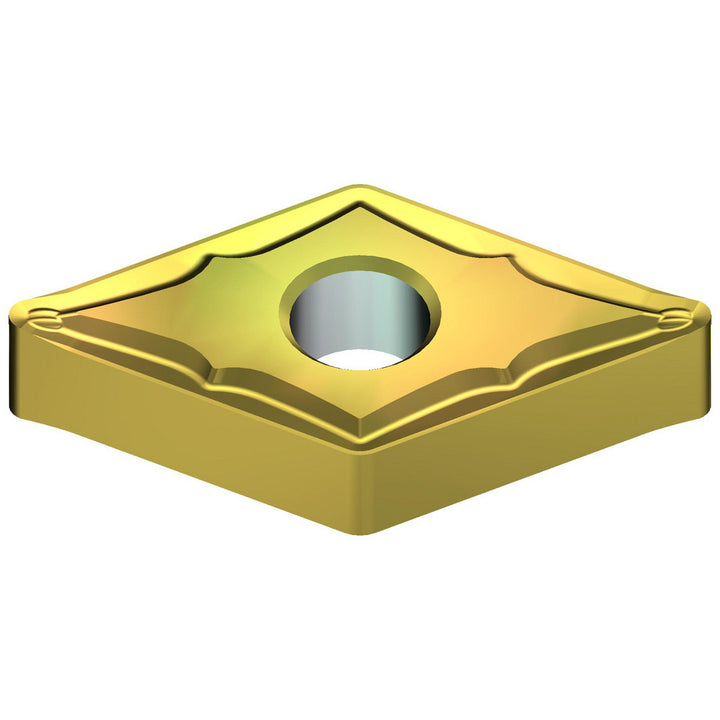

DNMG150404N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194AAPK
MFR# 194AAPKISO/ANSI# DNMG150404N-SUSeries DN
$14.97List $19.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194AAPK is a DNMG150404N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeDNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCermet
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
