Sumitomo

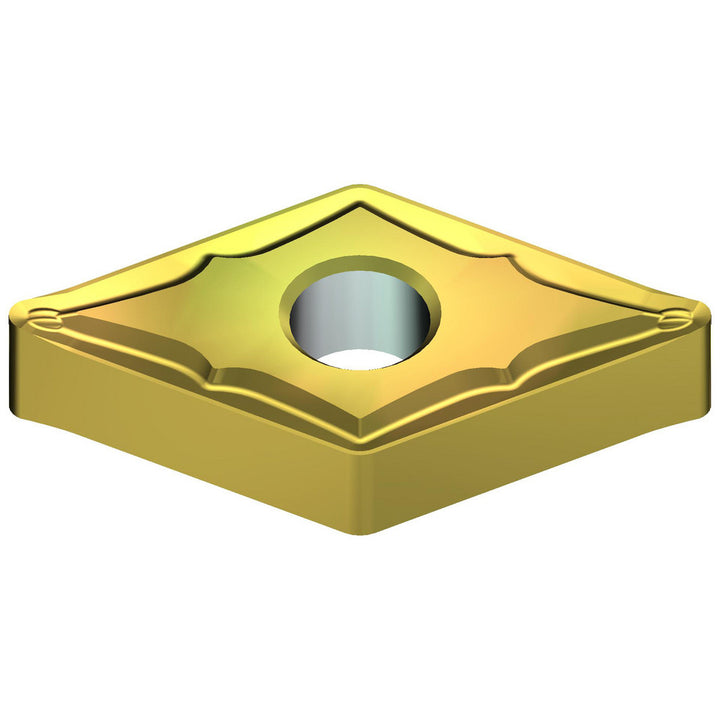

DNMG150408N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194AAPL
MFR# 194AAPLISO/ANSI# DNMG150408N-SUSeries DN
$17.22List $21.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194AAPL is a DNMG150408N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeDNMG432ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCermet
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
