Sumitomo

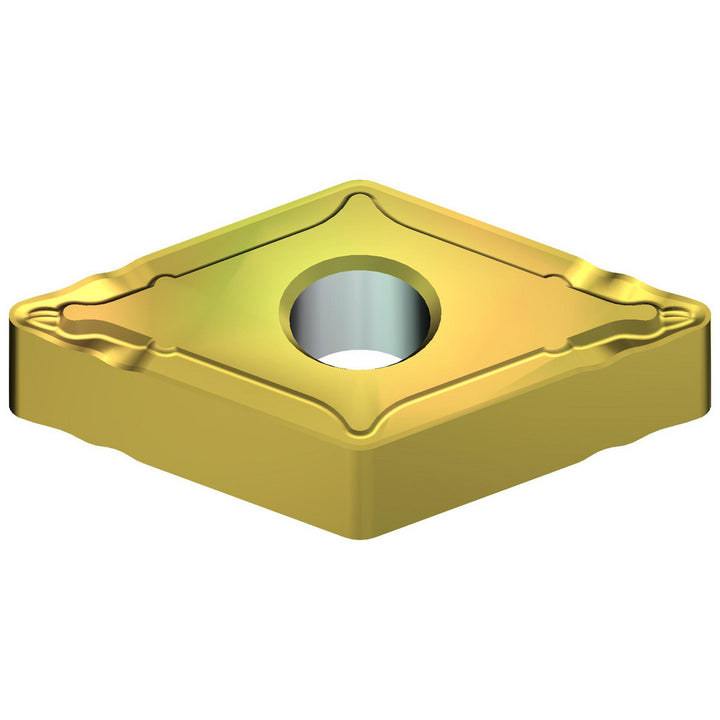

DNMG150408N-SX Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABEW
MFR# 194ABEWISO/ANSI# DNMG150408Series DN
$14.97List $19.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABEW is a DNMG150408N-SX cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerESX
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-SX
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
