Sumitomo

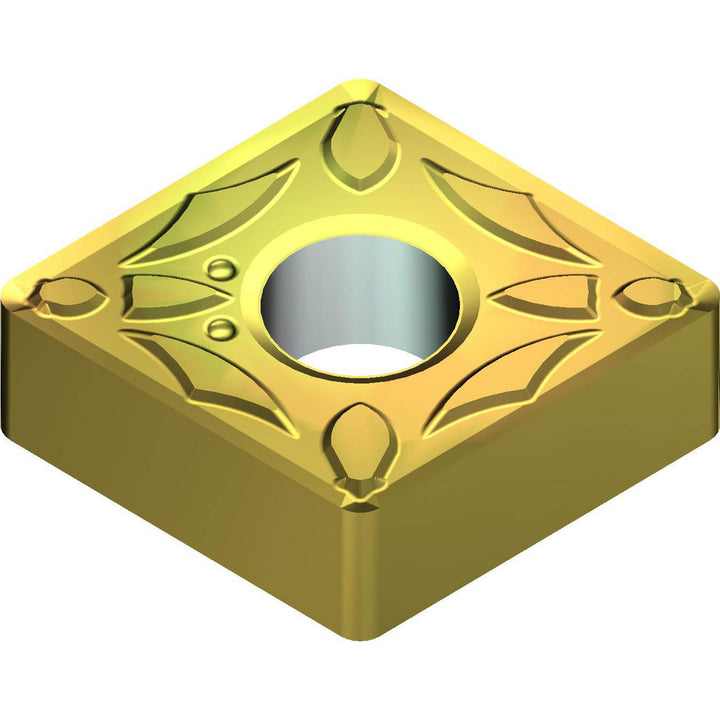

CNMG120402N-FA Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABNC
MFR# 194ABNCISO/ANSI# CNMG120402N-FASeries CN
$10.64List $13.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABNC is a CNMG120402N-FA cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeCNMG430.5EFA
Chip breakerEFA
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.2031
Inscribed circle0.5000
Insert handNeutral
Insert length0.5079
Insert materialCermet
Insert shapeDiamond
Insert size code430.5
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120402N-FA
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
