Sumitomo

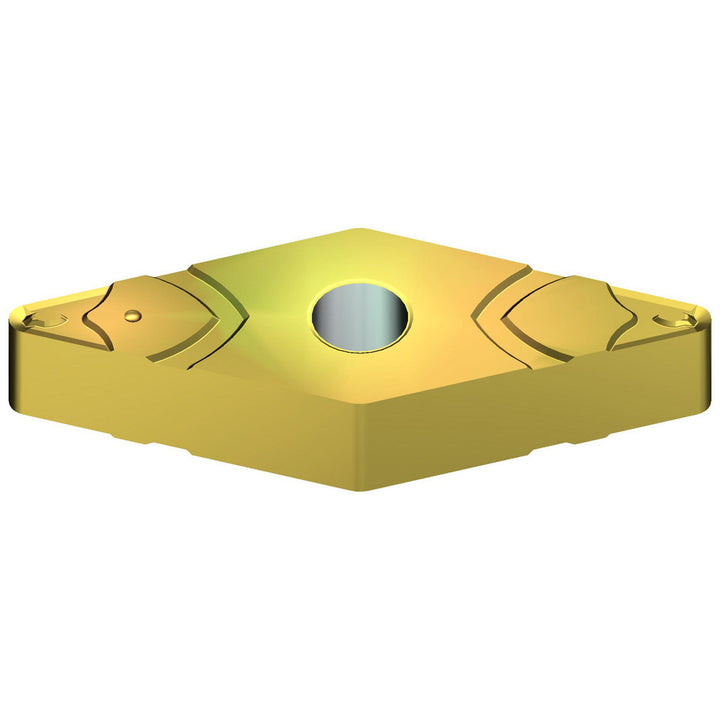

VNMG160404N-FA Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABNL
MFR# 194ABNLISO/ANSI# VNMG160404N-FASeries VN
$15.51List $19.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABNL is a VNMG160404N-FA cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerEFA
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCermet
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-FA
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
