Sumitomo

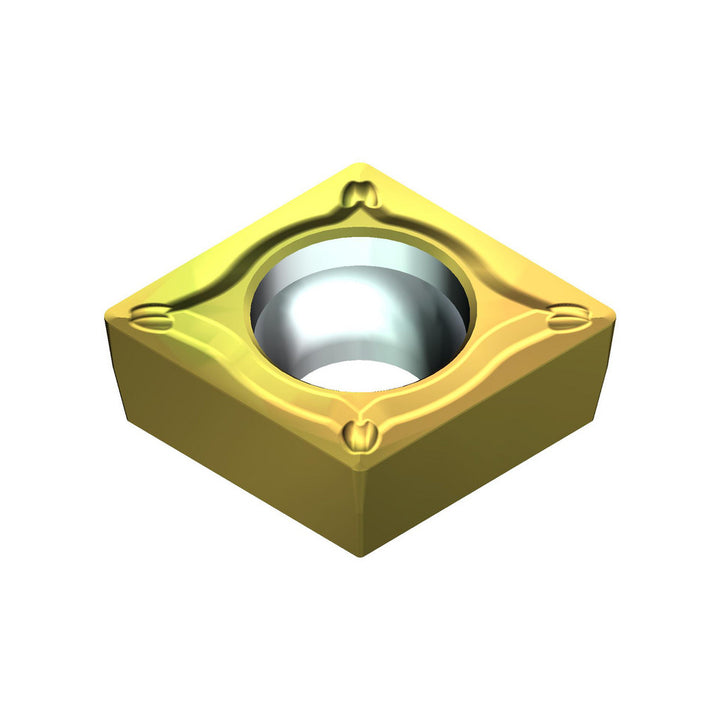

CCMT060202N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABPB
MFR# 194ABPBISO/ANSI# CCMT060202N-SUSeries CC
$7.73List $9.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABPB is a CCMT060202N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCermet
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
